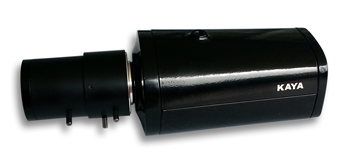

Lynceus™ XSN-9000 Network IP Box Camera with See-Through Vision

Quick Overview

3 Megapixels (2,048 x 1,536) at 30 IPS
Near Infrared Enhanced CMOS Sensor
See-Through Vision Technologies, KAYA's Proprietary System
Color, B/W and See-Through Vision 3 Modes Easily Selectable
Auto Back Focus (ABF) Mechanism
Auto Focus in Color, B/W and See-Through Vision Modes
Advanced Low-light Performance
True Wide Dynamic Range (WDR)
3D Noise Filtering Technologies
Anti-bloom Technologies
Adaptive Motion Detection
Camera Sabotage Alarm
Power over Ethernet
OEM/Custom Branding Available

Download Brochure

DISCONTINUED

Lynceus™ XSN-9000 Key Features

Super high resolution of 3 megapixels (2,048 x 1,536) at 30 IPS (Images Per Second).
Near infrared enhanced CMOS sensor sensitive to both visible and near infrared (NIR).
Combining NIR enhanced See-Through Vision technologies, KAYA's proprietary System. The See-Through Vision technologies provide the ability to see through fog, mist, haze, rain, snow, smog, dust, sand, dark sunglasses and tinted car windows*.
Progressive scan ensures clear images with less motion blur and no tearing even when the subject is moving.
Advanced low-light performance with true wide dynamic range (WDR), 3D noise filtering and anti-bloom technologies.
Smooth response to illumination changes.
Advanced color science to improve tone mapping to retain color accuracy and overall image contrast.
Multiple simultaneous streams with up to 2 different configurations plus service stream. The streams can be compressed in MJPEG and H.264 formats across several resolution configurations.
Real-time video (30 ips) with full HD resolution (up to 3 MPx) using H.264 compression for optimized bandwidth and storage efficiency.
A variety of frame rates, bit rates, and group of pictures (GOP) structures for additional bandwidth administration.
High sensitivity with Day & Night function: 0.005 Lux (Color, 500 ms), 0.0013 Lux (B/W, 500 ms) at F1.2.
Mechanical IR cut filter for increased sensitivity in low-light installations.
ABF (Auto Back Focus) mechanism ensures easy & quick installation.
ABF ensures that the camera automatically stays in perfect focus in color, B/W and See-Through Vision modes.
16 window blanks, configurable in size.
Snapshot with JPEG capture at 2016 x 1523 resolution.
Text overlays for camera name, time, date.
Full duplex bi-directional audio allows interactive communication between camera site and monitoring site.
Adaptive motion detection allows the camera to record or send an alarm when there is motion in selected zones or in an entire scene.
Camera sabotage alarm is triggered if the lens is obstructed, or when the camera is repositioned.
Micro SD memory card slot for manual recording, alarm recording and backup upon network failure.
IPv4/IPv6 protocol supported.
SSH, SSL, SMTP, FTP, ARP, ICMP protocols supported.
Power over Ethernet (PoE) to reduce costs and simplify planning, wiring, and installation.
ONVIF Profile S Conformant.
Compatible with major third-party video management systems and other third-party software through the open ONVIF Profile S standard.
Multilingual menus in user interface: English, French, Italian, German, Spanish, Portuguese, Russian, Chinese, Turkish.
3-Year Warranty and Support.

Lynceus™ XSN-9000 Specifications

Camera
Imaging Device	Near Infrared Enhanced 1/3" Progressive Scan CMOS Sensor
Highest Resolution	3 Megapixels (2,048 x 1,536) at 30 IPS (Images Per Second)
Imaging Mode	Color/Monochrome/See-Through Vision Selectable
Signal-to-Noise Ratio	>60 dB
Auto Back Focus	Yes
Electronic Shutter Range	1 ~ 1/77,000 Sec
True Wide Dynamic Range	Up to 100 dB
White Balance Range	2,000° to 10,000°K
Sensitivity	f/1.2; 2,850°K; SNR >20 dB Color: 0.1 Lux (33 ms), 0.005 Lux (500 ms) Mono: 0.05 Lux (33 ms), 0.0013 Lux (500 ms)
Day & Night Capabilities	Yes
Mechanical IR Cut Filter	Yes, On/Off/Auto Selectable, with different set points on Lux
Video
Video Streams	Multiple simultaneous streams with up to 2 different configurations plus service stream; the secondary stream is variable based on the setup of the primary stream
Available Resolutions	2048x1536/1920x1080/1600x1200/1280x1024/1280x960/1280x720/ 1024x768/800x608/800x448/640x480/640x352/320x240/320x176
Frame Rate	Up to 30, 25, 15, 12.5, 10, 5, 1 (depending on the coding, resolution, and stream configuration)
Video Encoding	H.264 High, Main, or Base profiles; and MJPEG
Bit Rate Control	Constrained variable bit rate (CVBR), constant bit rate (CBR), and variable bit rate (VBR) with target range
Service Stream	JPEG stream; the aspect ratio will be consistent with the independent streams
Audio
Streaming	Bidirectional: full or half duplex
Input/Output	Line level/external microphone input; 600-ohm differential, 1 Vp-p max. signal level; built-in microphone
Compression	G.711 PCM 8 bit, 8 kHz mono at 64 kbit/s
Network
Supported Protocols	TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, LDAP (client), SSH, SSL, SMTP, FTP, ARP, ICMP, and 802.1x (EAP)
Users	Unicast: Up to 20 simultaneous users depending on the resolution settings Multicast: Unlimited users H.264
Security Access	Password protected
Software Interface	Web browser view and setup
Mechanical
Lens Mount	C mount
Auto Iris Type	DC drive
Camera Mount	1/4 in. UNC-20 screw; top and bottom of camera housing
Electrical
Network Port	RJ-45 connector for 100Base-TX; Auto MDI/MDI-X
Accessory Port	Micro B USB connector for Pelco accessories
Cable Type	Cat5 or better for 100Base-TX
Input Power	PoE (IEEE 802.3af, Class 3)
Power Consumption	9 W nominal
Current Consumption	350 mA maximum
Local Storage	Micro SD
Alarm	Input: 10 VDC maximum, 5 mA maximum Output: 0 to 15 VDC maximum, 75 mA maximum
Relay Output	32 VDC maximum; 150 mA maximum
General
Safety Standard	CE Class A; FCC Class A; UL/cUL Listed; KCC
Construction	Material: Aluminum; Finish: Dark gray powder paint
Weight	52 kg (1.16 lb)
Dimensions	79 mm (W) x 76 mm (H) x 141 mm (D)
Operating Temperature	-10° to 50°C (14° to 122°F)
Storage Temperature	-10° to 60°C (14° to 140°F)
Operating Humidity	20 to 80%, RH noncondensing
Storage Humidity	20 to 80%, RH noncondensing
Minimum System Requirements
Processor	Intel® Core™ i3 processor, 2.4 GHz
Operating System	Microsoft® Windows® 7 (32- and 64-bit), or Window Vista®; or Mac® OS X 10.4 (or later)
Memory	4 GB RAM
Network Interface	100 Megabits (or greater)
Monitor	Minimum of 1024 x 768 resolution, 16- or 32-bit pixel color resolution
Web Browser	Internet Explorer® 7.0 (or later) or Mozilla® Firefox® 3.5 (or later); Internet Explorer 8.0 (or later) is recommended for configuring analytics
Media Player	Apple QuickTime® 7.6.5 for Windows 7, XP, or Vista; or QuickTime 7.6.4 for Mac OS X 10.4 (or later)

Lynceus™ XSN-9000 See-Through Vision Sample Photos

IR X-Ray Vision Cameras See Through Fog, Mist, Haze, Rain, Snow, Smog, Dust and Sand

IR X-Ray Vision Cameras See Through Dark Sunglasses

IR X-Ray Vision Cameras See Through Tinted Windows

IR X-Ray Vision Cameras See Through Envelope, Paper and Playing Cards

IR X-Ray Vision Cameras See Through Ink and Some Dyes and Pigments

NOTE: Lynceus™ is registered trademark of Kaya Optics, Inc. Specifications subject to change without notice.
